Modern means of measuring equipment

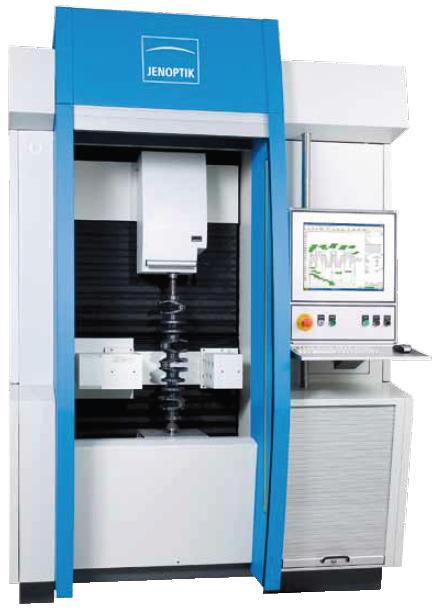

HOMMEL-ETAMIC Opticline C1000

Production:
JENOPTIK Industrial Metrology Germany (Germany)

HOMMEL-ETAMIC Opticline C1023
HOMMEL-ETAMIC Opticline C1023

With the opticline C1014 and C1023 shaft measuring system, objects up to 140/230 mm in diameter, up to 1000 mm in length and up to 40 kg in weight can be measured. These measuring systems are suitable for crankshafts, gear shafts and articulated shafts.

Opticline C1000 measuring systems are relatively compact, despite their high measuring power. This is an excellent combination of ergonomics, performance and compact design.

The opticline C1000 series has the following advantages:

  • Cabinet with air conditioning and powerful electronics for measuring and analyzing computers;
  • Height-adjustable control panel with flat 19 "TFT display;
  • Lockable drawer with drawers for the printer, tools and accessories.

Available installations with sliding doors, as well as light barrier protection and roller shutters. The object is held by the Morse cone. Using a digital indicator is very easy to install back rest.

Device with light barrier protection allows you to quickly load and unload various parts with maximum safety for the operator.



Опції:



  • Combined optical and contact measurement:

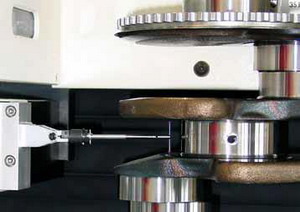

The opticline C1000 systems can be additionally equipped with a BTS 150 contact scanning system for measuring center-to-center distance and axial eccentricity. The combination of optical and contact measurement systems offers versatile capabilities and flexibility of use. The contact measuring system can be used for measuring objects in the central position and along external contours. This is an optimal addition to the optical sensor system for measurement of axial eccentricity.

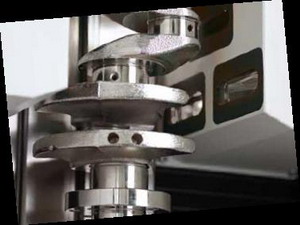

  • Heavy crankshaft measurement with Opticline C1023-75AE:
The Opticline C1023-75AE measuring system has a specially optimized camera, and is also equipped with a rotation axis in a high angular resolution of the measuring system. Also, this system allows you to measure parts weighing up to 75 kg.





Specifications:

Model С1014 С1023 С1023 - 75AE
Limits of measurement
Diameter, mm: 0,2 - 140 0,2 - 230 0,2 - 230
Length*, mm: 1 000
Dimensions
Diameter, mm: 300
Length*, mm: 1 000
Gravity, N: 400 750
Resolution
Diameter, mkm: 0,1 / 0,2
Length, mkm: 0,1/05 0,1
Rotation, °: 0,0018 0,0005 / 0,001
Accuracy / MPE **
Diameter, mkm: 2 + D [мм] / 100
Length, mkm: 5 + L [мм] / 100
Repeatable ***
Diameter, mkm: 0,5
Length, mkm: 3
Speed
Measuring, mm/s: Automatically optimized measurements:
10 - 80
Measuring rotation, r/s: 1
Positioning, mm/s: 200
Positional rotation, r/s: 1
Measurement time: Depends on the type and number of test characteristics
usually 3 … 30 s
Dimensions of the measuring system
[WxDxH], mm
1 785 × 1 700 × 2 650
Mass of the measuring system, N: 22 000
Interfaces of clamping devices
The lower Morse center: МК 3 МК 4
The Morse cone: МК 3 МК 4
Upper Center: Manual, 40 mm pneumatic, 40 mm
Source of power
Connection AC-PH, N, PE 3РН, РЕ
Voltage, V: 230 / 115 400 / 480
Frequency of mains, Hz: 50 / 60
Power consumption, kVA: 2 3
Fuse, A: 16


* - Between the tips of the standard supply set. The length can be reduced depending on the clips.

** - Surface of polished part, ambient and object temperature 20°C ± 1°C.
Changes in ambient temperature of less than 0.5°C/h, in accordance with DIN EN ISO 10360 or VDI / VDE 2617.
Mechanical environmental conditions according to DIN EN 30721-3-3, class 3M2.

*** - With 25-times measurements on the surface of polished parts (according to VIM).
