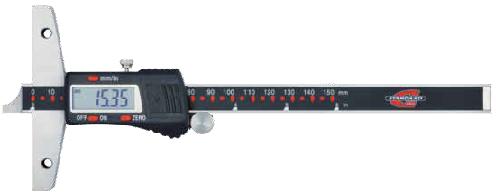

Electronic depth gauges (STANDARD GAGE)
- Production:
- Hexagon MI STANDARD GAGE (Switzerland - China)
Key features and specifications:
- Increment 0.01 mm / 0.0005 inches;
- Large, easy-to-read liquid crystal display;
- Limit of the permissible error: ± 0,02 mm (up to 150 mm), ± 0,04 mm (over 200 mm);
- Steel scale with magnetic divisions;
- Zeroing at any point in the measuring range;
- Operating temperature: +10 to +40 ºС;
- Display of measurement results in millimeters and inches;
- Protection class IP40;
- Drive wheel.
| Type | Measuring range, mm / inch | Cross section of the rod, mm | Length of the support bridge, mm |
| 00534101 | 0 ... 150 / 0 ... 6 | 16 × 3,5 | 100 |
| 00534102 | 0 ... 200 / 0 ... 8 | 16 × 3,5 | 100 |
| 00534103 | 0 ... 300 / 0 ... 12 | 16 × 3,5 | 150 |
| 00534104 | 0 ... 500 / 0 ... 20 | 16 × 3,5 | 150 |
Key features and specifications:
- Increment 0.01 mm / 0.0005 inches;
- Large, easy-to-read liquid crystal display;
- Limit of the permissible error: ± 0,02 mm (up to 150 mm), ± 0,04 mm (over 200 mm);
- Steel scale with magnetic divisions;
- Zeroing at any point in the measuring range;
- Operating temperature: +10 to +40 ºС;
- Display of measurement results in millimeters and inches;
- Protection class IP40;
- Drive wheel.
| Type | Measuring range, mm / inch | Cross section of the rod, mm | Length of the support bridge, mm |
| 00534105 | 0 ... 150 / 0 ... 6 | 16 × 3,5 | 100 |
| 00534106 | 0 ... 200 / 0 ... 8 | 16 × 3,5 | 100 |
| 00534107 | 0 ... 300 / 0 ... 12 | 16 × 3,5 | 150 |
| 00534108 | 0 ... 500 / 0 ... 20 | 16 × 3,5 | 150 |
Key features and specifications:
- Increment 0.01 mm / 0.0005 inches;
- Large, easy-to-read liquid crystal display;
- Limit of the permissible error: ± 0,02 mm (up to 150 mm), ± 0,04 mm (over 200 mm);
- Steel scale with magnetic divisions;
- Zeroing at any point in the measuring range;
- Operating temperature: +10 to +40 ºС;
- Display of measurement results in millimeters and inches;
- Protection class IP40;
- Drive wheel.
| Type | Measuring range, mm / inch | Cross section of the rod, mm | Length of the support bridge, mm |
| 00534109 | 0 ... 150 / 0 ... 6 | 16 × 3,5 | 100 |
| 00534110 | 0 ... 200 / 0 ... 8 | 16 × 3,5 | 100 |
| 00534111 | 0 ... 300 / 0 ... 12 | 16 × 3,5 | 150 |
| 00534112 | 0 ... 500 / 0 ... 20 | 16 × 3,5 | 150 |
Key features and specifications:
- Increment 0.01 mm / 0.0005 inches;
- Large, easy-to-read liquid crystal display;
- Limit of the permissible error: ± 0,02 mm (up to 150 mm), ± 0,04 mm (over 200 mm);
- Steel scale with magnetic divisions;
- Zeroing at any point in the measuring range;
- Operating temperature: +10 to +40 ºС;
- The length of the measuring rod is 6 mm, diameter 1 mm;
- Display of measurement results in millimeters and inches;
- Protection class IP40;
- Drive wheel.
| Type | Measuring range, mm / inch | Cross section of the rod, mm | Length of the support bridge, mm |
| 00534113 | 0 … 150 / 0 ... 6 | 16 × 3,5 | 100 |
| 00534114 | 0 ... 200 / 0 ... 8 | 16 × 3,5 | 100 |
| 00534115 | 0 ... 300 / 0 ... 12 | 16 × 3,5 | 150 |
| 00534116 | 0 ... 500 / 0 ... 20 | 16 × 3,5 | 150 |
