Scales Balance CBA

Laboratory general purpose scales Scales Balance CBA

Application:

Scales Balance CBA belong to the basic equipment of a pawn shop. A mandatory requirement is that the scales must be certified and have appropriate documents which enable to use them for "commercial weighing"*: weight measurement during commercial operations; weight measurement to calculate duties, tariffs, taxes, discounts, penalties, remunerations, indemnities or similar payments.

* According to the requirements of Technical regulations of non-automatic weighing systems (established by the Government of Ukraine on December 16, 2015 1062, entered into force on June 30, 2016)

Accuracy class according to the State Standards of Ukraine (DSTU) EN 45501: 2007 - high.

Description:

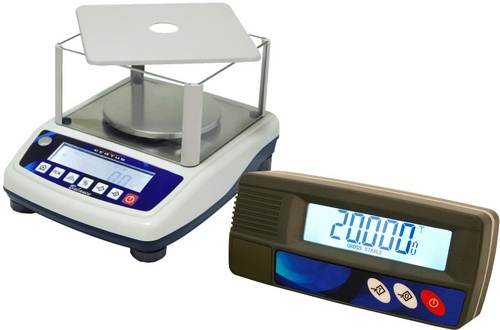

  • Scales 150 g, 300 g and 600 g with a round platform fitted with a protective cap from the air streams.
  • Protective cap has glass walls and aluminum cover.
  • Stainless steel platform.
  • Level indicator.
  • Easy-to-interpret LCD display with backlight.
  • Digit height is 16 mm.
  • RS 232 interface.
  • Built-in battery up to 40 hours.
  • Calibration: external.
  • Print output of the following data: date, time, weight.
  • Remote indicator is used as a customer display in commercial transactions.
  • Connection via RS-232 interface with a 5-meter cable between the scales and a 4.5-meter board.

Features:

  • definition of gross / net weight;
  • 3 digit unit weight;
  • summing, auto zero tracking;
  • overload alarm;
  • print output of date, time, weight.
    Scales
    Max, g
    Min, g
    d, g
    , g
    Platform, mm
    -150-0,02
    150
    0,4
    0,002
    0,02
    Ø 80
    -300-0,05
    300
    1
    0,005
    0,05
    Ø 120
    -600-0,01
    600
    0,5
    0,01
    0,1
    Ø 120

    * Max maximum capacity, Min minimum capacity. d division, e verification scale interval.

    1-year warranty. Post-warranty service for the entire period of operation in the Service Center of UA Company KODA.
