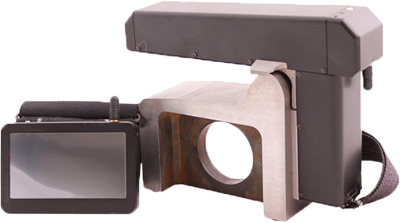

Laser profilometer of the surface of the riding of railway wheel pairs

Production:: Рифтэк (Belarus)

Laser profilometer of the surface of the riding of railway wheel pairs

Laser profilometer is designed to measure:

heights of the comb (rolled);
thickness of the comb;
steepness of the comb;
removal and analysis of the full profile of the wheel surface;
support of the electronic database on the wear of wheel pairs;
conducting admission control and disassembly during technical inspection, repair and formation of railway wheel pairs of locomotives and MVRS.

The measurements are made directly on the rolling stock, without rolling out the wheel pairs.

How it works
The operator installs the instrument on the measured wheel. By command with a PC or PTC (pocket tablet computer), the built-in laser module is (similar to the RF603 series laser triangulation sensor) performs contactless scanning of the wheel surface. Measurement results (geometric parameters and surface profile) are displayed on the PTC, can be stored in the PTC memory and transmitted to the PC database. Additional parameters are saved simultaneously: operator number, side identifier (left or right wheel), axis number, locomotive number (wagon) number, wheel number, etc.

Specifications

Parameter Value

Measuring range

comb height, mm: 20 … 45

comb thickness, mm: 20 … 50

steepness of the comb, mm: 1 … 15

Bandage thickness, mm: 36 … 100 (30 ... 90)

Measuring error

comb height, mm: ± 0,1

comb thickness, mm: ± 0,1

steepness of the comb, mm: ± 0,2

Bandage thickness, mm: ± 0,5

Indication discreet, mm 0,01

Range of profile construction, mm: 145

Discrete construction of the profile, not worse, mm: 0,1

Dimensions of the indication device (PTC),mm: 112,5 × 95,5 × 22,7

Dimensions of the laser scaning module, mm: 214 × 156 × 54

Power supply of the laser module: 4,8В (4 batteries type ААА 1,2В)

Power supply of the PTC: Li-polimer battery 3,7В 3300mAh

Number of measurements without recharging, no less: 1000

Memory of the indication device: 100 000 measurements

Laser profilometer interface: Bluetooth

Process temperature range, °С: -15 … +35

Protection class: IP42

Supply kit

Marking Name Number Mass, kg

РФ303М Indication device (PTC) 1 0,3

РФ505 Laser scaning module 1 0,8

РФ505.40 Charging device 9V 3.0A for PTC 1 0,2

РФ505.41 Charging device 9V 3.0A for laser module 1 0,2

РФ505.42 Data transfer cable 1

РФ505.43 Bluetooth - modul 1

РФ505.30 Case 1 1,2

IKP5_DB Database support software (CD-disc) 1

РФ505РЭ Manual 1

Calibration tools (optional):

РФ505.11 Calibration unit
4

РФ505Calibr Calibration software

Additional information

Buy Laser profilometer of the surface of the riding of railway wheel pairs on the territory of Ukraine in the fields of: Vinnytsia, Volyn, Dnipropetrovsk, Zhytomyr region, Transcarpathian, Zaporozhye, Ivano-Frankivsk, Kiev, Kirovograd, Lviv, Mykolayiv, Odesa, Poltava, Rivne , Sumy, Ternopil, Kharkiv, Kherson, Khmelnytsky, Cherkasy, Chernihiv.
Buy Laser profilometer of the surface of the riding of railway wheel pairs production Рифтэк for producer prices can be in one of the offices, representative offices in the cities KODA - Kiev, Nikolaev and the main office in Kharkiv.
The price of Laser profilometer of the surface of the riding of railway wheel pairs quickly calculated on the basis of the required customer technical parameters of the product.
Initial and periodic verification, diagnosis, adjustment, calibration, service - warranty and post-warranty. The specialists of KODA will perform maintenance Laser profilometer of the surface of the riding of railway wheel pairs on a professional level. Professional advice on the use of Laser profilometer of the surface of the riding of railway wheel pairs.
