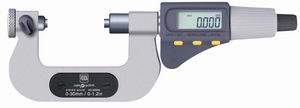

MICROMASTER
- Production:
- Hexagon MI TESA (Switzerland)
Main features and specifications:
- measuring spindle with linear movement - without spindle locking;
- digital scale resolution 0.001 mm / 0.00005 inches;
- RS-232C interface;
- with a set of measuring inserts (type 02.69027);
- permissible error 3 μm;
- other specifications: as in the standard MICROMASTER micrometer model.
- Micrometers MICROMASTER series
| Type | Measuring range, mm / inch |
| 60.30045 | 0…30 / 0…1,2 |
| 60.30046 | 25…50 / 1,0…2,1 |
Set of 7 pairs of replaceable inserts to micrometers MICROMASTER.
Micrometers MICROMASTER without measuring inserts:
| Type | Measuring range, mm / inch |
| 60.30099 | 0…30 / 0…1,2 |
| 60.30100 | 25…50 / 1,0…2,1 |
Measuring inserts (it is possible for the customer to purchase both a complete set or an individual measuring inserts):
| Type | Description | Size, mm |
| 02.69027 | Complete set of measuring inserts (7 pairs) | |
| Kit contents: | ||
| 02.69020 | flat | diameter 6,5 |
| 02.69021 | small, flat | diameter 2 |
| 02.69023 | big, flat | diameter 12 |
| 02.69024 | narrow, flat | 0,7 |
| 02.69026 | sharped | 0,1 / 60° |
| 02.69022 | spherical | R = 5 |
| 02.69025 | cone-shaped | diameter 0,3 / 60° |
It is possible to manufacture measuring inserts according to the customer´s individual request.
