Pressure gauge type 111.12
- Production:
- WIKA (Germany)
Designed for gaseous or liquid, not highly viscous and not crystallizing measured media that are not aggressive to copper alloys. Joining the back side.

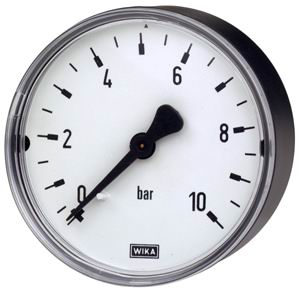

- Manometer type 111.12
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 40, 50, 63, 80, 100 |
| Measurement size (EN 837-1/5) | 0…0,6 to 0…400 bar |
| Class (EN 837-1/6) | 2,5 / 1,6 (НР 80, 100) |
| Joining | External thread on the back side, НР 40: G1/8B, others: G1/4B |
| Sensing element | Burdon tube, copper alloy |
| Housing | Black plastic. НР 100: black painted steel |
| Execution | EN 837-1 |
| Possible options / features | Housing is made of black painted steel. Special version for heating systems, for water level indicators, tire pressure measurements |
| Data sheet | РМ 01.09 |
