Pressure gauge type 212.20
- Production:
- WIKA (Germany)
Massive construction. Intended for gaseous and liquid, not strongly viscous and not crystallized measured media.

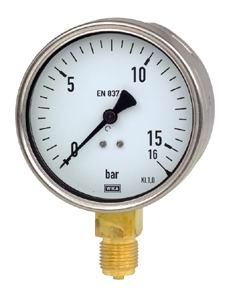

- Pressure gauge type 212.20
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 100, 160 |
| Measuring range (EN 837-1/5) | НР 00: 0…0,6 to 0…1000 bar, НР 160: 0…0,6 to 0…1600 bar |
| Accuracy class (EN 837-1/6) | 1 |
| Joining | External thread below or from the back side, G 1/2 В, SW 22 |
| Sensing element | Burdon tube, copper alloy |
| Housing | Chrome-nickel steel |
| Execution | EN 837-1 |
| Possible options / features | Front or below joining, liquid filling: НР 160 (type 213.20), НР 100 (type 213.53), electrocontacts |
| Data sheet | РМ 02.01 |
