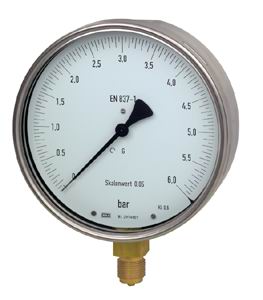

Pressure gauge type 312.20
- Production:
- WIKA (Germany)
Version for high-precision measurements. Accuracy class of 0.6. Diameter 160 mm.
- Pressure gauge type 312.20
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 160 |
| Measuring range (EN 837-1/5) | 0…0,6 to 0…600 bar |
| Accuracy class (EN 837-1/6) | 0,6 |
| Joining | External thread below or from the back side, G 1/2 B |
| Sensing element | Burdon tube, copper alloy |
| Housing | Chrome-nickel steel |
| Execution | EN 837-1 |
| Possible options / features | Increased temperature of the measured area up to 100 ° C, increased temperature to 200 ° C (data sheet PM 03.05), liquid filler, fixing edge in the front or from the back side (chrome-nickel steel), three-faced front ring (polished chrome-nickel steel ) with mounting bracket, electrical contacts (data sheet AE 08.01), remote sensor (type 89Х.34.500, data sheet РЕ 81.04) |
| Data sheet | РМ 03.01 |
