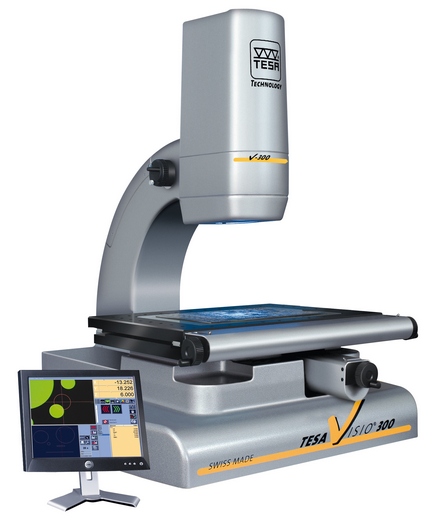

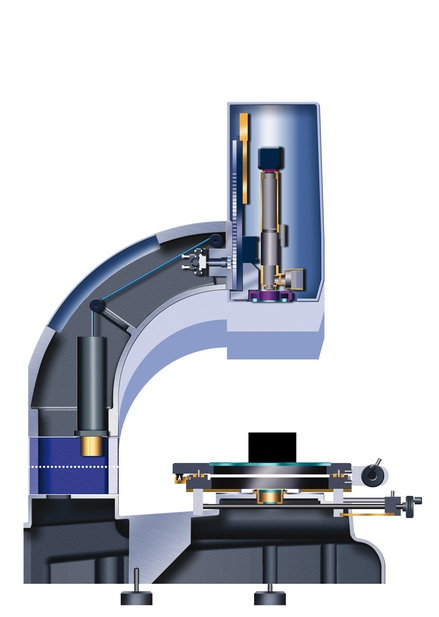

TESA-VISIO 300

Manual or automatic video measuring machines for contactless measurement. Models with manual control can be supplied with TESA-VISTA - the software solution for metrological tasks in the world of industry. These easy-to-use machines can also be equipped with software PC-DMIS, which is a powerful system for studying the items in 2-D and 3-axis directions.

Working on the software PC-DMIS-vision, machine version with automatic motorized control able to operate in automatic mode. These machines are among the most competitive on the market today.

Main features:

• motorized zoom of 20x to 130x, and even more, depending on the screen;
• LED light source, so there is no thermal effect;
• incident light (episcopic) created a double row of 24 LEDs, grouped into 4 segments (Frenel lens), each of which is controlled individually. Brightness is configurable with software. Coaxial illumination available as an option.
• transmitted light (overhead) from the green LED with adjustable brightness;
• laser pointer (class 1) for locating the measurement area;
• coordinate measuring table with optoelectronic incremental scales;

  Resolution 0.05 mm

  -Measuring space X = 300mm, Y = 200mm, Z = 150 mm

  -Unlock system providing the ability of quick moving the table in the X and Y (manual models) directions.

  -Right- or left hand control in the X and Z directions.

  -Maximum load on table is 16 kg

• 17" LCD display
• Software TESA-VISTA or PC-Dmis has the function of edges detection.

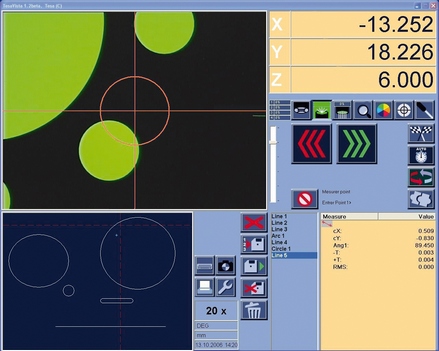

Software TESA-VISTA

Easy-to-handle measuring software with user-friendly interface. It allows to measure a large number of geometric shapes quickly and accurately.

Main features:

• Displaying the current position on the X, Y and Z on screen with a resolution of 0.001 mm.
• Zeroing the chosen coordinate with a simple mouse click
• Metric or inch system of measurement
• Descartes and polar coordinate system
• Ability to save the video
• Graphical presentation of a pre-specified and measured geometric elements
• Automatic determination of edges
• Support and controll measurement in Z direction.

Supported geometric elements and measurement functions

• point
• radius
• diameter
• arc or circle
• angle
• straight
• distance (X / Y)
• groove
• measuring Z axis
• interposition
• squareness
• parallelism
• theoretical point
• theoretical diameter
• conversion of X and Y zero point.

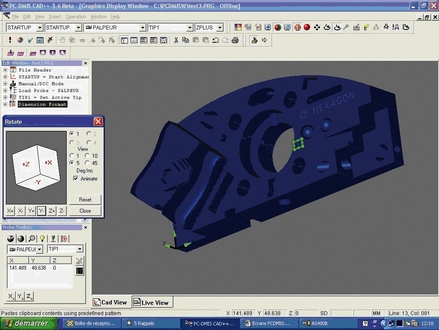

Software PC-Dmis Vision

Having numerous possibilities of programming, software PC-Dmis Vision provides a large supply of functionality implemented using the upgrade to more advanced algorithms.

All measurement protocols can be configured for the most comfortable user experience and further processing and storage in a variety of formats.

Main characteristics

• Measurement in real time to the subpixels
• Programming on the principle “pointed and clicked”
• Automatic determination of edges (increase the positioning speed, precision positioning crosshair accuracy and repeatability of measurements)
• Taking the large number of points for measurement errors of form with high accuracy
• Import CAD-files of various formats
• Stand-alone (off-line) drawing up measurement programs
• Easy programming
• Reverse engineering and export to CAD-format
• Automatic detection of increase is used. No need for re-calibration of the measuring lens during programming.
• Automatic or manual control
• Simplified control in Z direction by focusing using computer graphics mode
• Display of all measured values on the screen, including the results of measurements of relative position of geometric elements and edge definition.
