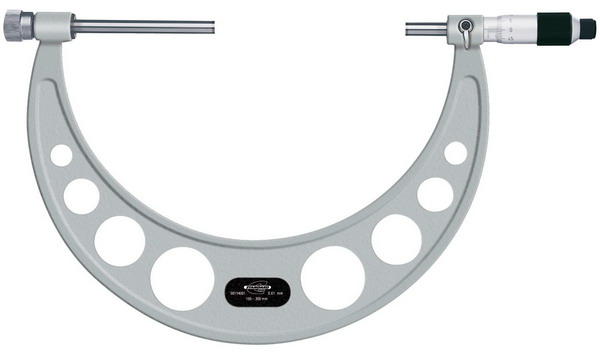

STANDARD GAGE (interchangeable anvils)
Key features and specifications:
- One-piece cast iron bracket (for models with measuring range up to 300 mm) and welded of pipes (for models with a measuring range of more than 300 mm);
- Price division of the vernier scale, mm: 0,01;
- Mounting measure included;
- Friction drum;
- Solid carbide measuring surfaces;
- Supplied in a separate box with an inspection report.

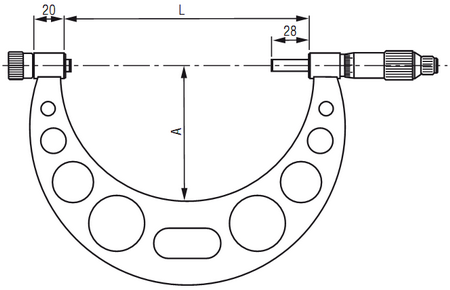

| Type | Measuring range, mm | Error, mm | A, mm | L, mm | Measuring tips, pcs | Installation measures, pcs |
| 00114030 | 0 … 150 | 0,006 | 82 | 158 | 6 | 5 |
| 00114031 | 150 … 300 | 0,009 | 165 | 308 | 6 | 6 |
| 00114032 | 300 … 450 | 0,011 | 250 | 459 | 6 | 6 |
| 00114033 | 450 … 600 | 0,015 | 321 | 609 | 6 | 6 |
| 00114034 | 600 … 750 | 0,016 | 401 | 759 | 6 | 6 |
| 00114035 | 750 … 900 | 0,020 | 476 | 909 | 6 | 6 |
| 00114036 | 900 … 1050 | 0,021 | 551 | 1059 | 6 | 6 |
