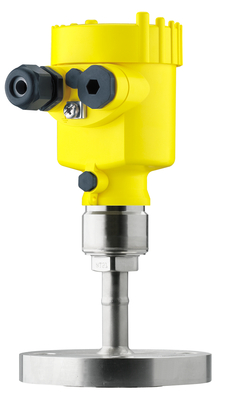

VEGABAR 81 pressure transmitter

Production:
VEGA (Germany)

Hydrostatic and pressure transmitters VEGABAR 81 pressure transmitter

VEGABAR 81 pressure sensors with metal insulating diaphragm are used to measure pressure and level in the chemical industry when working with corrosive substances at high temperatures and pressures.

  • Measuring cell: isolating diaphragm
  • Measuring range: -1…1000 bar (-10…100000kPa)
  • Deviation: 0,2%
  • Process temperature: -90…+400 ° C
  • Connection: thread from G ½, ½ NPT, flanges from DN 25, 1", sanitary connection
  • Output signal: 4…20 mA, 4…20 mA/HART, Profibus PA, Foundation Fieldbus

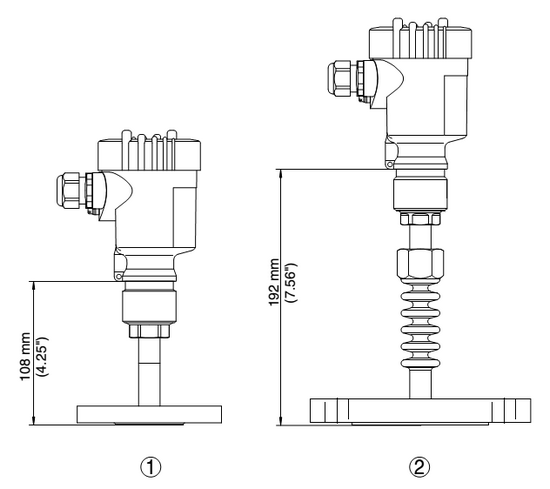

  1. Flange version +150 ° C;
  2. Flanged version with cooling element, up to +300 ° C
