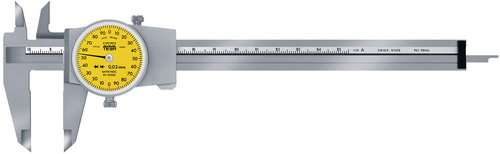

Dial calipers TESA
Manufacturer:
- TESA Technology (Switzerland)
Main features and specifications:
- dial gauge with 32 mm diameter;
- drive wheel (types 00510045, 00510046);
- deviation limit of up to 100 mm is 20 mm, when more than 100 mm - is 30 mm;
- locking screw to record the measurement results;
- shock-proof;
- frame with a metal dial.
Dial calipers TESA, metric
| Part number | Measuring range, mm |
Resolution, mm |
Travel/ revolution, mm |
Thumb roller | Material | A | B | C | D | E | Delivery time |
| 00510050 | 0…150 | 0,01 | 1 | - | Metal | 40 | 13 | 1,5 × 1,8 | 3,2 | 15,5 | in stock |
| 075115821 | 0…150 | 0,02 | 1 | - | Metal | 40 | 13 | 1,5 × 1,8 | 3,2 | 15,5 | to order |
| 00510008 | 0…150 | 0,02 | 2 | - | Metal | 40 | 13 | 1,5 × 1,8 | 3,2 | 15,5 | in stock |
| 00510004 | 0…150 | 0,02 | 2 | - | Plastic | 40 | 13 | 1,5 × 1,8 | 3,2 | 15,5 | to order |
| 00510045 | 0…200 | 0,02 | 2 | + | Metal | 50 | 18,6 | 1,5 × 1,8 | 3,6 | 15,5 | to order |
| 00510046 | 0…300 | 0,02 | 2 | + | Metal | 64 | 20,6 | 1,5 × 1,8 | 4 | 15,5 | to order |
Dial calipers TESA, imperial
| Part number | Measuring range, in |
Resolution, in |
Travel/ revolution, mm |
Thumb roller |
Material | Execution | A | B | C | D | E | Delivery time |
| 075115811 | 0…6 | .001 | .1 | + | Metal | Silver dial | 40 | 13 | 1,5 × 1,9 | 3,2 | 15,5 | to order |
| 075116550 | 0…6 | .001 | .1 | + | Metal | Black dial | 40 | 13 | 1,5 × 1,9 | 3,2 | 15,5 | to order |
Brochure
TESA Catalog calipers EN (pdf, 3`038 Кб)
