Digital depth gauges TESA with fixed hook(s)
Manufacturer:
- TESA Technology (Switzerland)
Key features and specifications:
- large liquid crystal display with a symbol height of 11 mm;
- housing is made of stainless steel with a special wear-resistant coating;
- permissible errors: from 100 mm to 200 mm - ± 30 µ, from 200 mm to 300 mm - ± 40 µ;
- repeatability: 10 µ;
- display measurement results in millimeters and inches;
- extended battery life of more than 12,000 hours;
- zeroing at any point in the measurement range;
- automatic power off after 10 minutes;
- operating temperature: +5 ... + 40 °C;
- permissible humidity: up to 100%;
- protection class: IP67.

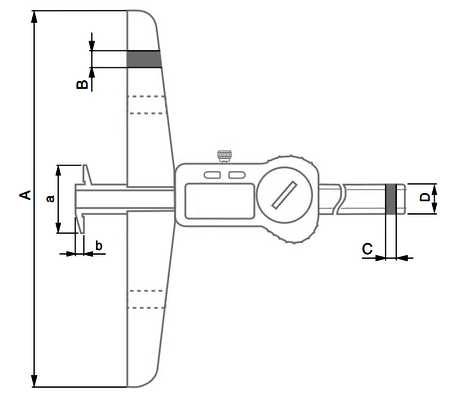

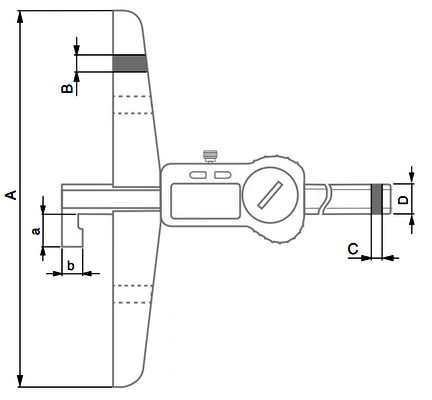

| Part number | Measuring
range, mm / in |
Resolution, mm / in |
Number of hooks | Data output | Degree of protection |
A, mm |
B, mm |
C, mm |
D, mm |
a, мм |
b, мм |
Delivery time |

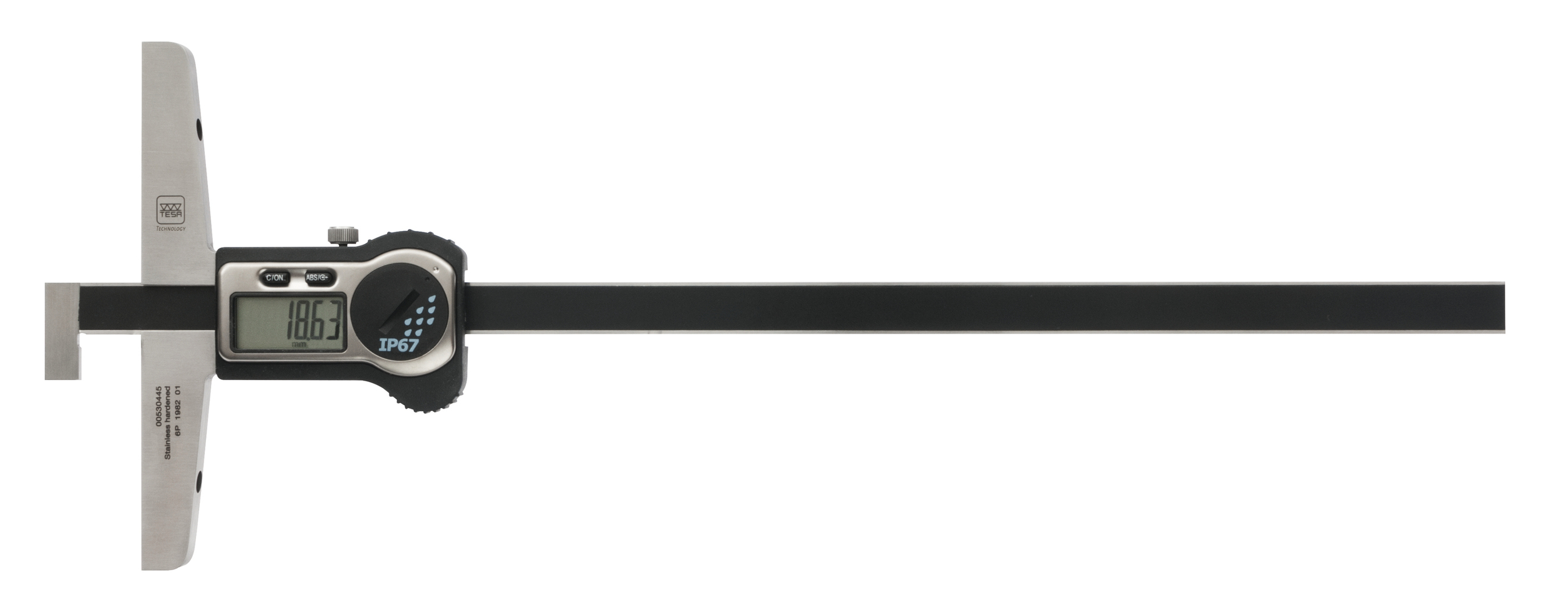

| 00530445 | 0…300 / 0…12 | 0,01 / .0005 | 1 | TLC | IP67 | 150 | 8,5 | 4 | 15 | 15,5 | 10 | to order |
| 00530446 | 0…500 / 0…20 | 0,01 / .0005 | 1 | TLC | IP67 | 150 | 8,5 | 4 | 15 | 15,5 | 10 | to order |
| Part number | Measuring
range, mm / in |
Resolution, mm / in |
Number of hooks | Data output | Degree of protection |
A, mm |
B, mm |
C, mm |
D, mm |
a, мм |
b, мм |
Delivery time |

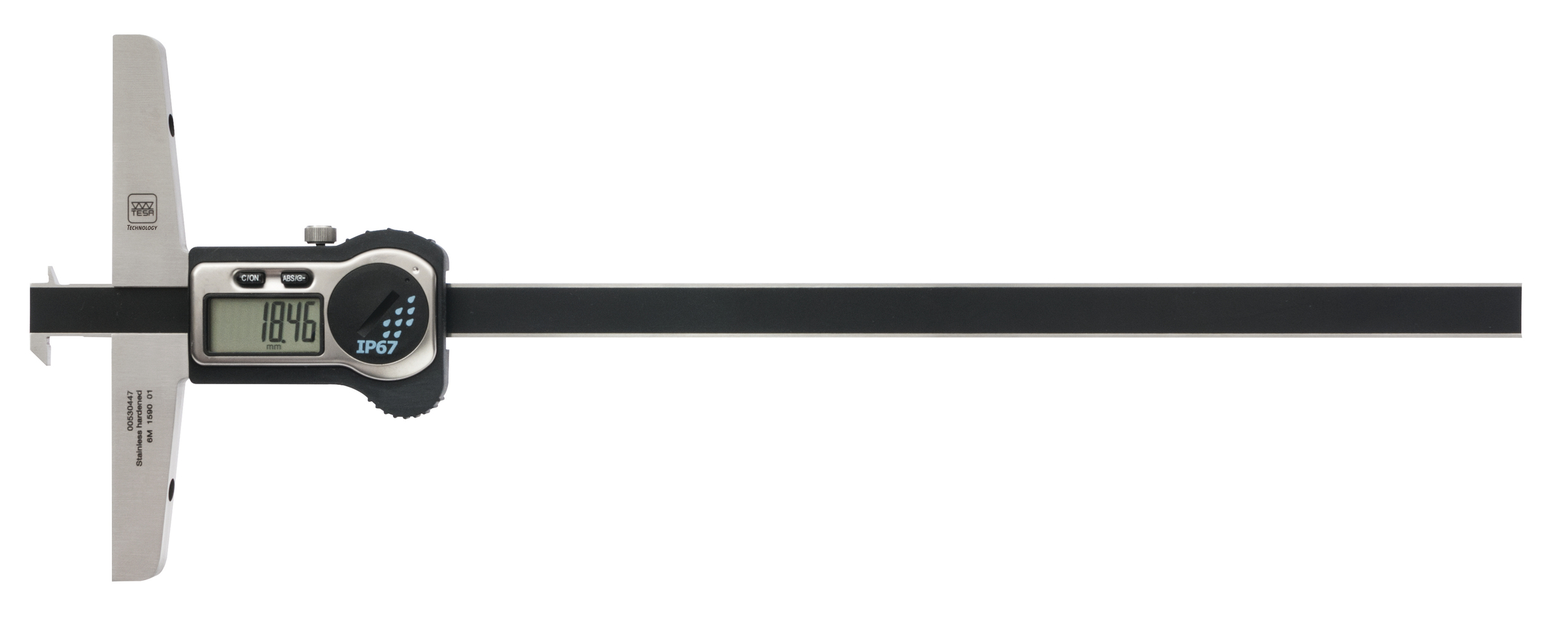

| 00530447 | 0…300 / 0…12 | 0,01 / .0005 | 2 | TLC | IP67 | 150 | 8,5 | 4 | 15 | 15,5 | 10 | to order |
Brochure
TESA Catalog calipers EN (pdf, 3`038 Кб)
