H2F series

ZEMIC (China)

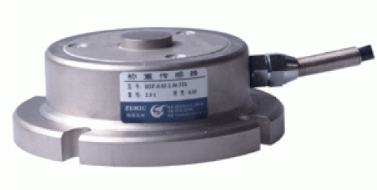

Cylinder type load cells H2F series

Load cells of the membrane type have small height, which allows them to be used in weighing systems with limited installation dimensions of the insertion points - for the modernization of bunker scales, for the equipment of vehicles (loaders, trailers, trucks, etc.) in weighbridges of underlay type, etc.

Maximum, kg: 1000, 2000, 3000

Accuracy class: C3

Material: nickel-plated steel.

  • Work transfer coefficient: 2 mV/V;
  • Combined error: 0.02% of the maximum capacity;
  • Class of protection: IP67;
  • Range of temperature compensation: -10... +40°C;
  • Permissible overload: 150%;
