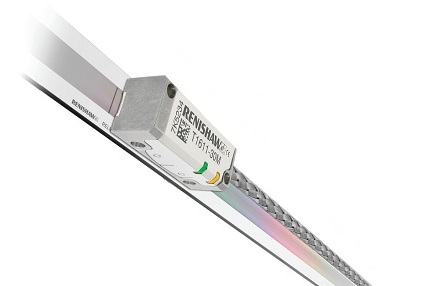

Optical incremental linear encoder TONiC UHV with scale tape made of stainless steel RSLM
- Production:
- Renishaw plc (Graet Britain)
- Encoder TONiC UHV with scale tape made of stainless steel RSLM
The reading head of the linear TONiC UHV encoder can be used with the Renishaw stainless steel linear scale RSLM with IN-TRACTMoptical zero marks. This encoder system provides exceptionally reliable feedback on position in ultrahigh vacuum conditions. Linear encoders TONiC UHV are designed for use in semiconductor devices and scientific equipment, where exceptional reliability and highest performance are required.
TONiC incremental reading head with high performance
All TONiC readers use Renishaw´s latest generation optical signal filtering system, now enhanced to achieve ultra-low noise. The effectiveness of this innovative system is further enhanced by dynamic signal processing, which provides automatic gain control (AGC) and bias (AOC). The output signals in this system are exceptionally clean and provide a subdivision error (SDE) of ± 30 nm, a noise level (jitter) to 0.51 nm (rms value) and a resolution of up to 1 nm.
In all TONiC scales a unique optical zero mark IN-TRAC is built in directly into the incremental channel, which allows automatic electronic synchronization to be performed simply by pressing a button. This makes it possible to perform this operation remotely. The advantage of the zero mark IN-TRAC is also that it remains synchronized at all speeds and within the entire operating temperature range.
Precision RELM scales for vacuum operation
The inverse RELM rulers provide a "zero" coefficient of thermal expansion and a total certified accuracy of more than ± 1 μm at lengths up to 1130 mm. All these advantages make such scales especially useful in the case of axes of long length, where perfect accuracy is required.
TONiC UHV reading heads are manufactured in extremely clean conditions, using materials and adhesives with low gas evidences. The finished product is packed and sealed in a special bag in order to ensure proper cleanliness.
Analysis of the composition of residual gases
The results of an independent analysis of the residual gases showed the suitability of the entire system as a whole for operation in a vacuum. The system can also be degassed at 120 degrees Celsius and then used in ultra-high vacuum conditions. Typical examples of the application of this system: feeding and moving semiconductor wafers and their verification, as well as conducting research.
Specifications
| Built-in LED head position indicator |
Yes |
| Measuring range, m: | to 10 |
| Length of the optical scale RSLM, m: | from 0,08 to 10 |
| Resolution of digital output signal RS422, nm: | 1, 5, 10, 20, 50 , 100, 200, 500, 1000, 5000 |
| Resolution of analog output signal: | — 1 Vpp |
| Step of the scale, mkm: | 20 |
| Max speed, m/s: | 10 |
| Clearance between reading head and optical scale, mm: |
2,1 ± 0,15 |
| System accuracy at 20 ° C, μm/m: | – ± 1,5 (on length up to 1 m) – ± 2,25 (on length up to 2 m) – ± 3 (on length up to 3 m) – ± 4 (on length up to 5 m) |
| Scale option: | —with self-adhesive base - mechanically fastened (base bracket and clamps) |
| Coefficient of thermal expansion, μm/m/°С: | 10,8 |
| Supply voltage, V: | 5 ± 10 % |
| Current consumption (without load), mA: | — < 100 (analog system) — < 200 (digital system) |
| Material of the optical scale RSLM: | hardened martensitic stainless steel |
| Cable: | — braided copper cable, shielded in one layer with silver foil, FEP-insulation of cores, deposited on tinned (tin-covered) copper wire |
| Length of the cable, m: | 0.5, 1, 1.5, 2, 3, 5 (connector type D (15-pin), mini connector for direct connection to Ti-interface) |
| Dimensions of the reading head TONiC T1010 (height × length × width), mm: | 10,0 × 35,0 × 13,5 |
| Mass, g: | reading head TONiC - 10 - Ti-interface - 100 |
| Mass of the cable, g/m: | optical scale RSLM — 173 — cable — 14 |
| Reference mark (zero): | optical, IN-TRAC, with automatic zero-signal synchronization |
| Limit switches: | – single, magnetic – paired, magnetic |
| Temperature, °С: | — process — from 0 to + 70 — storage — from – 20 to + 70 – sintering – + 120 |
| Degree of protection: | reading head TONiC — IP40 — Ti–interface — IP20 |
| Max humidity (without compensation, + 40 °C), %: |
95 |
| Process acceleration, m/s 2: | 500 |
| Impact (in non-operating state, 6 ms, half-sinusoidal impulse), m/s 2: |
1000 |
| Vibration (in operation mode, at, at 55-2000 Hz), m/s 2: | not more than 100 |
