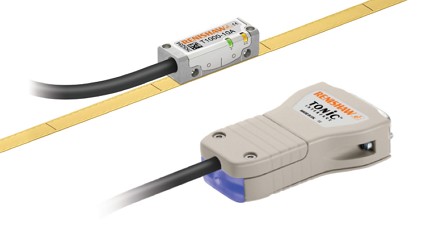

Optical incremental linear encoder TONiC with steel scale tape with gold coating RGSZ
- Production:
- Renishaw plc (Graet Britain)
- Encoder TONiC with steel scale tape with gold coating RGSZ
TONiC T1000 series is a new generation of ultra-compact encoders that have been specially developed for precision linear motion measuring systems operating at high speed, the encoders of this series provide higher accuracy and speed, as well as increased reliability and are used in a number of industries where very high requirements for measurements.
This compact reading head is complemented by a large-scale RGSZ tape with a gold coating of the latest design, the optical zero marks IN-TRAC ™ (starting positions) on this tape are selected by the user. These structures are uniquely built directly into the incremental channel, which allows you to perform electronic self-synchronization by simply pressing a button. Moreover, IN-TRAC zero marks provide bidirectional reproducibility, have exceptional resistance to yaw excursions and maintain synchronization over the entire speed range (10 m/s) and temperatures (70 °C).
In order to achieve maximum reliability, consistency of characteristics and a high degree of immunity to contamination, the TONiC read heads have a third generation optical signal filtering system that provides even lower noise (jitter-jitter), now the system is improved by dynamic signal processing , which includes automatic gain and offset control. This combination - and all systems are enclosed inside the head - gives a signal of exceptional purity and an extremely low subdivision error (periodic error): only ± 30 nm. As a result, smoother speed control is provided, which improves scan results and improves positioning stability-critical parameters for many tasks.
For the TONiC reading heads, a removable analog or digital interface is also provided, realized as a strong, convenient connector, which can be located up to ten meters from the head. This interface can perform digital interpolation with a resolution of up to 1 nm, with synchronized output signals to achieve optimal performance at any resolution in the case of standard controllers.
TONiC T1000 series encoders are extremely suitable for applications where very stringent requirements are imposed on precision, for example flat panel displays and photovoltaic cells, wire mounting, electronic assembly equipment, PCB drilling, coordinate measurement systems and various positioning tables, in which the advantages of linear motors, air cushions and high-speed drives are used.
Features and benefits of the TONiC T1000 and Ti-Interface Reader
- Periodic error: ± 30 nm, which ensures the accuracy of operation inherent in encoders with a smaller pitch.
- Compact overall dimensions: 10.0 × 35.0 × 13.5 mm (H × D × W).
- Extremely high signal stability under conditions not acceptable for most open optical encoders.
- User selectable automatic gain adjustment (AGC) mode allows to maintain a constant analog signal amplitude of 1 Vpp.
- Ability to work at speeds up to 10 m/s and temperatures up to 70 °C.
— New opportunity! Increase the stability of positioning due to the optical signal filtering system, characterized by low noise (jitter).
- Standard analog and digital output signals.
- Easy setup and diagnostics of the system thanks to the LED indicators on the reading head and interface.
- The flexible cable between the reading head and the UL-compliant interface is up to 10 m long.
- Compliance with the requirements of the RoHS directive.
RGSZ scaled tape in 20 μm steps
Scale tape RGSZ is a thin flexible steel strip, which is coated with gold to ensure high reflectivity and corrosion resistance. This tape can be fixed, using a self-adhesive base, on most materials used in the industry, including metals, granite, ceramics and composite materials. Now, the tape also has an optical zero mark IN-TRAC with automatic synchronization, which ensures two-way repeatability.
- The tape is supplied on a reel, so you can cut off parts of the desired length, from 50 mm to 50 m.
- Small thickness, fastening using a self-adhesive base.
- Longer service life and durability thanks to the application of varnish on top of the gold layer.
- Durable polyester coating for protection from solvents.
The RGSZ tape has temperature characteristics corresponding to the characteristics of the substrate on which the tape is attached, which simplifies the process of compensating for the effect of temperature.
- A special device is provided for fast and accurate installation of the scale tape (patented).
You can always cut a piece of any necessary length that optimizes inventory management and minimizes waste.
- High accuracy of linearity tolerance of ± 3 μm / m provides high overall accuracy with simple adjustment procedure.
Specifications
Built-in LED head position indicator |
Yes |
Measuring range, m: | up to 50 |
Length of the optical scale RGSZ, m: | from 0,05 to 50 |
Resolution of digital output signal RS422, nm: | 1, 5, 10, 20, 50 , 100, 200, 500, 1000, 5000 |
Resolution of analog output signal: | — 1 Vpp |
Step of the scale, mkm: | 20 |
Max speed, m/s: | 10 |
Clearance between reading head and optical scale, mm: |
2,1 ± 0,15 |
System accuracy at 20 ° C, μm/m: | ± 15 (± 3 — with 2-point compensation) |
Scale option: | —with self-adhesive base |
Coefficient of thermal expansion, μm/m/°С: | — corresponds to the substrate material, the ends of the scale are fastened by clamps |
Supply voltage, V: | 5 ± 10 % |
Current consumption (without load), mA: | — < 100 (analog system) — < 200 (digital system) |
Material of the optical scale RGSZ: | steel plated scale with a protective lacquer or polyester coating |
Cable: | — flexible, with double shielding, outer diameter 4,25 ± 0,25 mm, bending life more than 20x10 6 cycles with a bend radius of 20 mm , corresponds to the UL standard |
Length of the cable, m: | 0.5, 1, 1.5, 2, 3, 5 (connector type D (15-pin), mini connector for direct connection to Ti-interface) |
Dimensions of the reading head TONiC T1000 (height × length × width), mm: | 10,0 × 35,0 × 13,5 |
Mass, g: | reading head TONiC T1000 - 10 - Ti-interface - 100 |
Mass of the cable, g/m: | 26 |
Reference mark (zero): | optical, IN-TRAC, with automatic zero-signal synchronization |
Limit switches: | – single, magnetic – paired, magnetic |
Temperature, °С: | — process — from 0 to + 55 — storage — from – 20 to + 70 |
Degree of protection: | reading head TONiC T1000 — IP40 — Ti–interface — IP20 |
Max humidity (without compensation, + 40 °C), %: |
95 |
Process acceleration, m/s 2: | 500 |
Impact (in non-operating state, 6 ms, half-sinusoidal impulse), m/s 2: |
1000 |
Vibration (in operation mode, at, at 55-2000 Hz), m/s 2: | not more than 100 |
