Measuring arm Absolute Arm 7-Axis

Production:
Hexagon MI ROMER (France)

Coordinate-measuring arms Measuring arm Absolute Arm 7-Axis

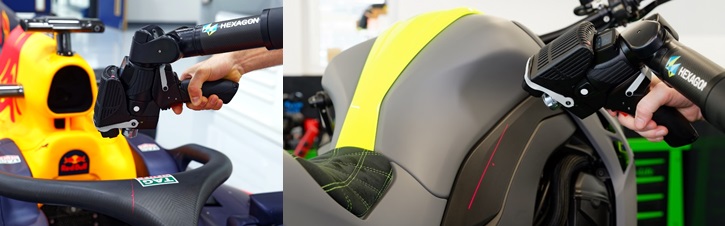

Quality control, inspection, measurements on the production line, reverse engineering, virtual assembly, or 3D modeling - the Absolute Arm 7-Axis can be used to solve all of these tasks. Lightweight, stable, portable, and high-performance laser scanners turn the Absolute Arm 7-Axis into a multifunctional tool for three-dimensional control, analysis, and data digitization, which can be used everywhere by any operator with minimal qualifications.

The updated measurement arms HEXAGON ABSOLUTE ARM of the 8th generation are produced in three modifications, with three levels of accuracy and in seven sizes, giving a total of 36 different machine configurations, each of which can best solve the specific metrological tasks of the customer. HEXAGON ABSOLUTE ARM arms do not require time for heating and initialization, thanks to the use of industrial ultra-precise absolute rotation angle sensors from HEXAGON MI LEICA. It is enough just to install the measuring arm next to the part and turn it on to start measuring.



The revolutionary 8th generation hand design has become even more versatile and ergonomic in use: a unique modular wrist design with a handle of variable shape and size, a mini display on the handle that displays control functions and measurement results, made working with a portable measuring machine even easier and more comfortable.

Built on a high-tech carbon fiber construction, the ABSOLUTE ARM Coordinate Measuring Arm is capable of providing strength and temperature stability in industrial environments, ensuring reliable and accurate performance in harsh environments.

Advanced technology features in the updated line of coordinate measuring arms provide maximum performance and make portable measurement easier than ever.

INCREASING PRODUCTIVITY IN ALL INDUSTRIES

Typical Industries: Automotive, Aerospace, Power/Wind Energy, Manufacturing, Foundry, Metal Fabrication, Mechanical Engineering, Sports Equipment, Pipe Manufacturing, Agricultural and Heavy Equipment, Shipbuilding, Railroad, Archeology and preservation of historical heritage.

Typical tasks: inspection of sheet metal parts, dies and molds/tools, machined parts, installation and alignment of assembly equipment, pipes and tube production, comparison of parts with CAD, alignment of structures, reverse engineering, virtual assembly, inspection of parts before painting, inspection during metalworking, inspection of composite materials, casting and templates.

ISO 10360-12 ISO 10360-2
Model Euni1, Psize2, Ldia3, Pform4, AS1 SSA5, RS5 SSA5, MPEp6, MPEe7, SSA8,
83 Series
8320-7 0,039 0,015 0,048 0,033 0,057 0,059 0,044 0,061 0,062
8325-7 0,048 0,019 0,057 0,038 0,062 0,065 0,049 0,069 0,068
8330-7 0,064 0,027 0,086 0,049 0,078 0,088 0,079 0,100 0,092
8335-7 0,082 0,035 0,108 0,060 0,095 0,100 0,099 0,125 0,105
8340-7 0,104 0,043 0,134 0,073 0,113 0,116 0,115 0,151 0,122
8345-7 0,135 0,053 0,168 0,090 0,155 0,164 0,141 0,179 0,172
85 Series
8520-7 0,029 0,010 0,038 0,021 0,039 0,043 0,023 0,033 0,045
8525-7 0,031 0,012 0,048 0,025 0,045 0,046 0,027 0,038 0,048
8530-7 0,053 0,020 0,080 0,035 0,061 0,063 0,042 0,058 0,066
8535-7 0,064 0,024 0,096 0,043 0,075 0,076 0,055 0,081 0,080
8540-7 0,081 0,029 0,117 0,050 0,085 0,087 0,067 0,098 0,091
8545-7 0,113 0,040 0,140 0,065 0,134 0,141 0,084 0,119 0,148
87 Series
8725-7 0,027 0,011 0,042 0,021 0,041 0,042 0,023 0,034 0,044
8730-7 0,048 0,016 0,072 0,032 0,054 0,056 0,036 0,052 0,058
8735-7 0,060 0,019 0,087 0,038 0,065 0,068 0,047 0,073 0,071
8740-7 0,075 0,025 0,106 0,043 0,076 0,078 0,057 0,078 0,082
8745-7 0,104 0,035 0,0125 0,050 0,115 0,121 0,071 0,107 0,127

1 - Maximum permissible longitudinal measurement error - according to ISO 10360-12: 2016
2 - Maximum permissible stylus deviation, size - according to ISO 10360-12: 2016
3 - Maximum permissible stylus deviation, shape - according to ISO 10360-12: 2016
4 - Maximum permissible stylus deflection, position - according to ISO 10360-12: 2016
5 - Scanning system accuracy: LDIA, in accordance with ISO 10360-8 section D
6 - Maximum permissible measurement error of one point (repeatability), in accordance with ISO 10360-2
7 - Maximum permissible volumetric measurement accuracy, in accordance with ISO 10360-2
8 - Scan accuracy: LDIA according to ISO 10360-8 Appendix D

Operating conditions
Operating temperature: +5 ˚C to +45 ˚C (32 F .. 113 F)
Storage temperature: -30 ˚C to +70 ˚C (-22 F .. 158 F)
Relative humidity: 10% .. 90% non-condensing
Altitude: 0 .. 2000 m (0 .. 6600 ft)

Power settings
Mains voltage: 110V .. 240V.

Features and Benefits

Probing and scanning

High-accuracy touch probing performance together with high-end, high-productivity scanning from the Absolute Scanner AS1 or AS1-XL the Absolute Arm 7-Axis is a multifunctional measurement tool that delivers clear productivity improvements through increased usability and versatility.

Absolute Encoders

The renowned Absolute Encoders placed in every articulated joint of the Absolute Arm make it the only portable measuring arm on the market to eliminate encoder referencing and frustrating system warm-up times, boosting productivity while delivering high-end accuracy.

>

Advanced materials

Built on a foundation of high-tech carbon-fibre tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.

Complete protection

The worlds first portable measuring arm with an IP54 rating, and guaranteed functionality in temperatures of up to 45 degrees Celsius, the Absolute Arm is the perfect partner for measurement in even the most challenging environmental conditions.

Configurable wrist

The ergonomically designed wrist of the Absolute Arm 7-Axis features an OLED measurement display screen, interchangeable grips, exchangeable probe and scanner mountings and a selection of control buttons, making complete one-handed operational efficiency easier than ever before.

Effortless movement

Intuitively located infinite-rotation low-friction grips have been designed to maximise accuracy by minimising user fatigue and making every movement light and easy to handle together with a sophisticated counterbalance system, the Absolute Arm is the most agile arm on the market.

Essential security

Stow and lock in place the Absolute Arm between measurements with the HomeDock and SmartLock functions, ensuring that scanners and probes remain undamaged and factory-accurate.

User feedback

In even the harshest industrial environments, communicating with the Absolute Arm in a way that keeps the measurement process running at full speed and efficiency has never been more simple, through our range of visual, acoustic and haptic feedback functions.

Absolute portability

Even the largest Absolute Arm 7-Axis systems weigh only 10.5 kilograms, making setup and repositioning a quick and easy process, while the functionally designed and shock-resistant carry case keeps everything secure during transport.

ISO certification

The probing accuracy of the Absolute Arm 7-Axis is certified according to ISO 10360-12 as standard, with full scanning system accuracy certified according to ISO 10360-8 Annex D when supplied with an Absolute Scanner AS1, AS1-XL or RS5 Laser Scanner.

Technological foundation

Built upon years of portable measuring arm technology, the Absolute Arm 7-Axis is the latest in a long line of market leading articulated measuring arms, from the ROMER Arm to the ROMER Absolute Arm and now beyond.
