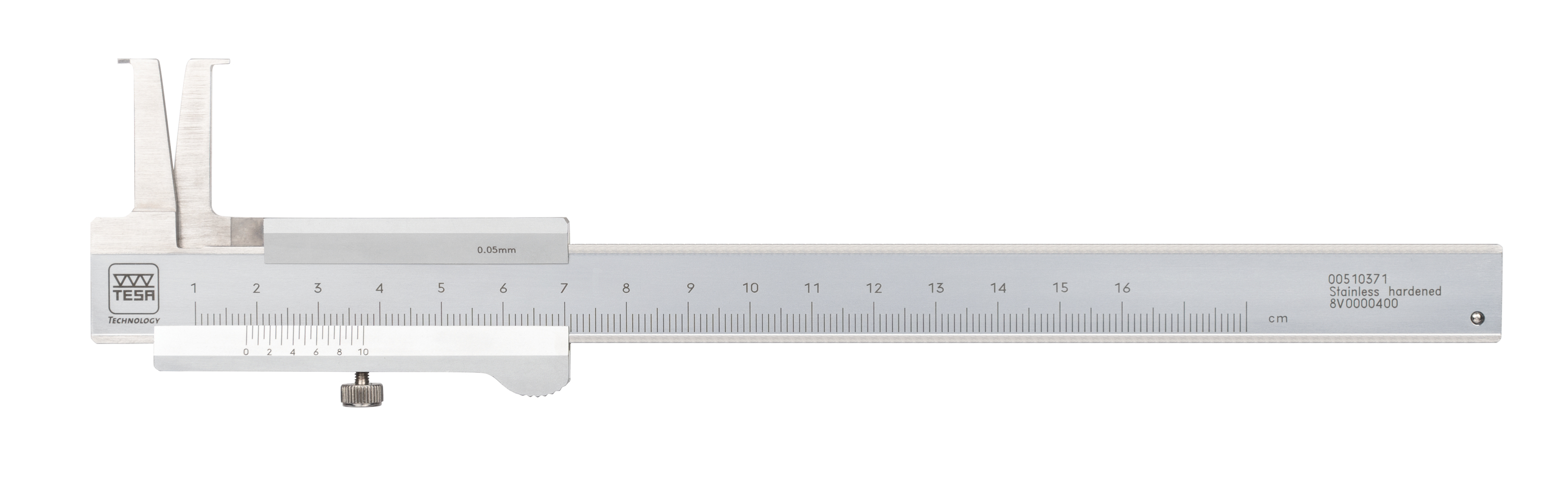

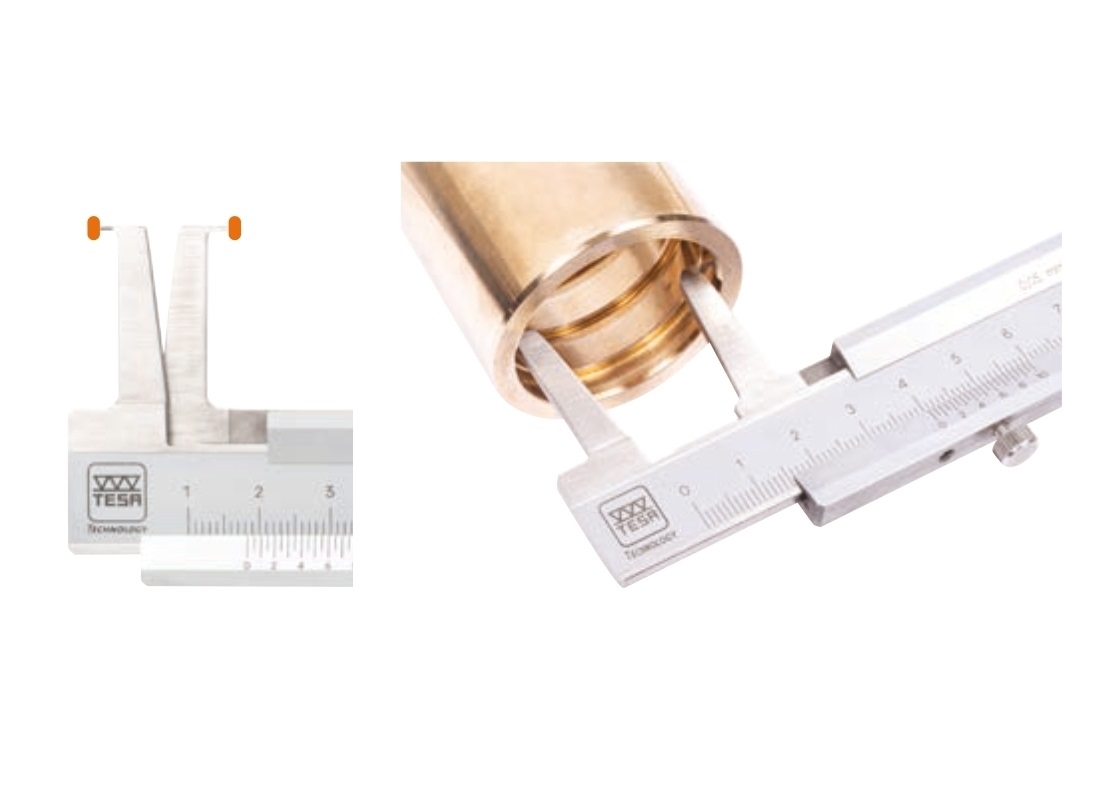

Vernier calipers TESA for groove measurement
Manufacturer:
- TESA Technology (Switzerland)
Key features and specifications:
- material: hardened stainless steel;
- permissible errors: from 100 mm to 200 mm - ± 30 µ, from 200 mm to 300 mm - ± 40 µ;
- satin-chrome scale and vernier for good reading;
- locking screw;
- main scale slightly set back for protection against wear;
- material: hardened stainless steel;
- included in an individual case with measuring report.
Нониусные штангенциркули TESA для измерения канавок

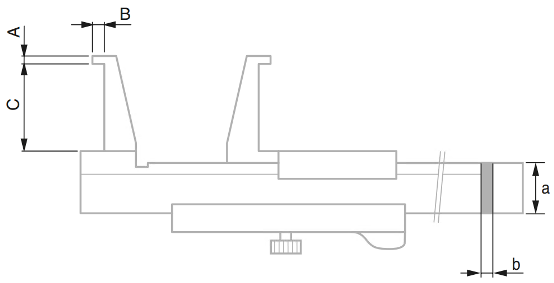

| Part number | Measuring range, mm | Resolution, mm | A, mm | B, mm | C, mm | a, mm | b, mm | Delivery time |
| 00510371 | 10…160 | 0,05 | 0,9 | 3 | 25 | 16 | 3 | to order |
| 00510375 | 20…160 | 0,05 | 2 | 5 | 40 | 16 | 3 | to order |
| 00510383 | 26…200 | 0,02 | 3 | 7 | 60 | 16 | 3 | to order |
| 00510387 | 30…250 | 0,02 | 4 | 8,5 | 80 | 20 | 4 | to order |
| 00510393 | 35…300 | 0,02 | 5 | 10 | 100 | 20 | 4 | to order |
Brochure
TESA Catalog calipers EN (pdf, 3`038 Кб)
